Burnout Furnace
LZ-2 Burnout Furnace — Stainless Muffle
Benchtop wax-elimination furnace with a stainless outer shell, insulated muffle chamber and programmable temperature controller.
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Need volume pricing or a fit-out quote? Request a quote
Specification
- Chamber
- Moulded refractory muffle with matched door plug
- Shell
- Stainless steel over insulated chamber
- Controller
- Setpoint controller with digital readout, base mounted
- Controls
- Master switch, run indicator, separate control knobs
- Rated power
- 3000 W
- Chamber size
- Confirmed at quotation — built in more than one size
- Ramp programming
- Confirmed at quotation
- Supply
- 220 V, 15 A
- Maximum temperature
- 1100 °C
- Shipping weight
- 43 kg gross
- Packed size
- 53 × 46 × 69 cm
Why this unit

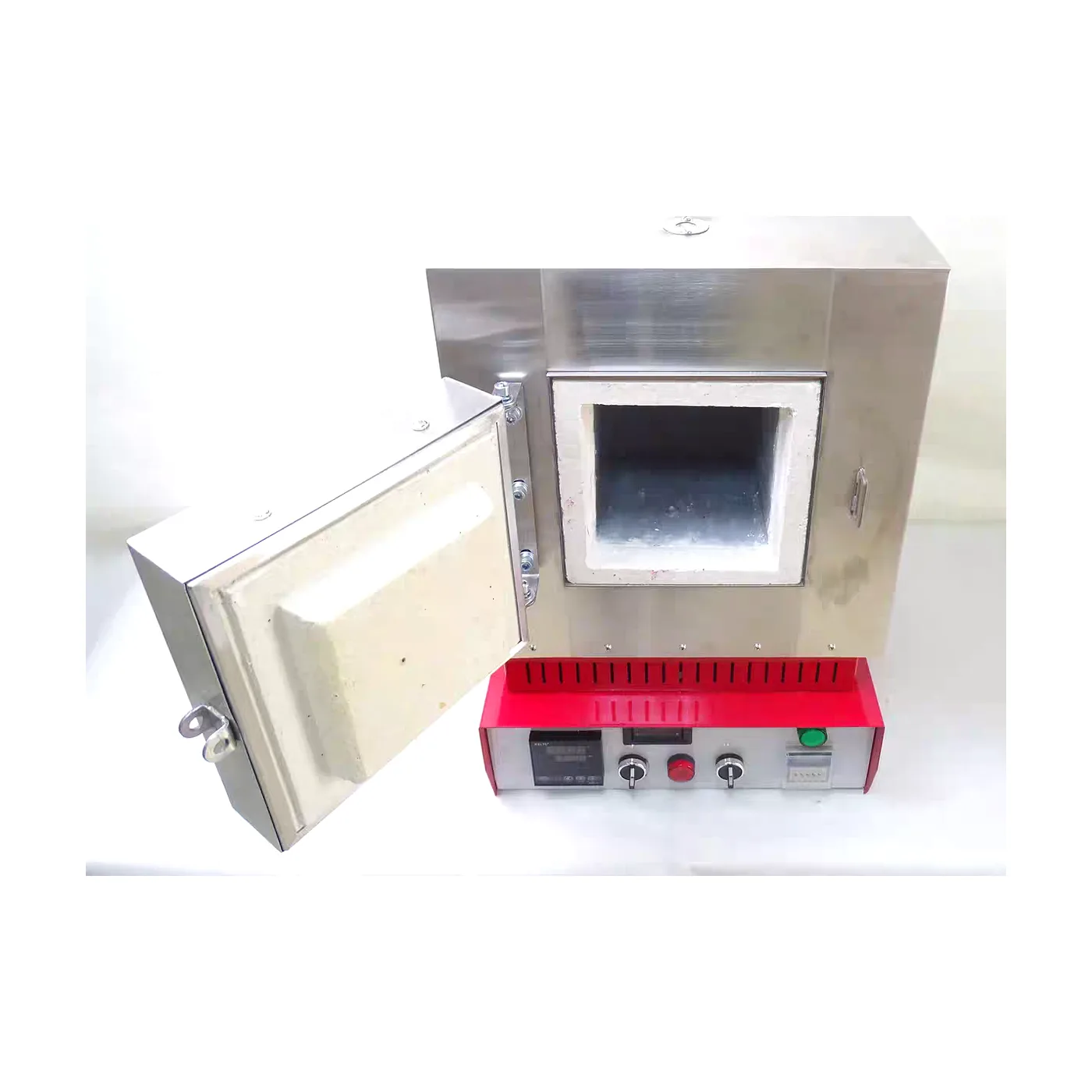

A benchtop burnout furnace for wax elimination and ring preheat. The chamber is a moulded refractory muffle inside a stainless outer shell, with a matched insulating plug in the door so the door face does not become the cold spot that stalls the top of a ring.

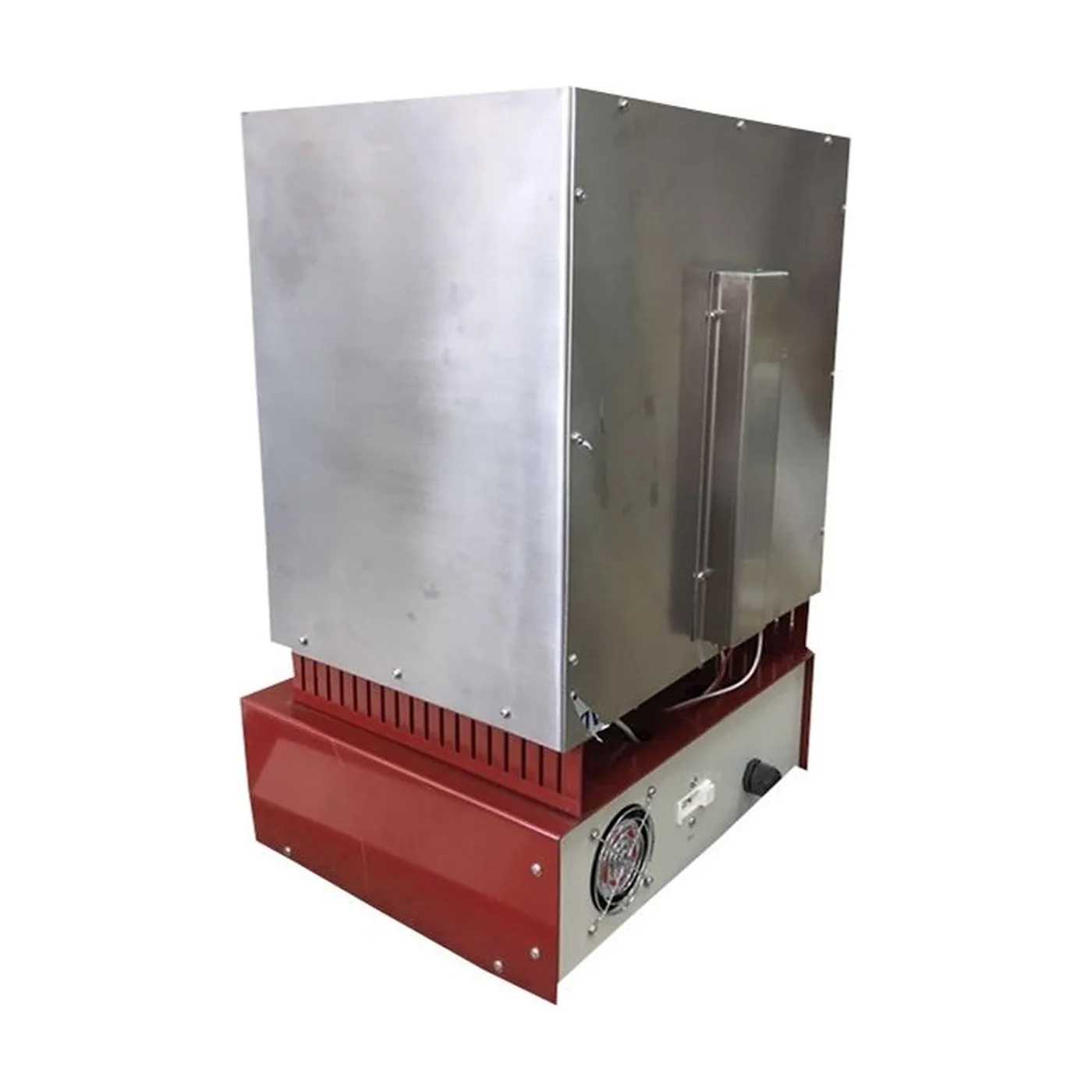

The controller sits in a ventilated base below the chamber rather than beside it, which keeps the electronics out of the rising heat and leaves the whole bench width in front of the door free for loading. Controls are a setpoint controller with digital readout, a master switch, and a separate illuminated run indicator.
Supplied by the manufacturer under a 3 kW designation. Confirm the chamber size, ramp programming and supply voltage on your quotation before ordering — this shell is built in more than one chamber size.
