LZCX-I Vacuum Forming Machine — Bead Bed — image 1 of 2
Vacuum Forming Machine
LZCX-I Vacuum Forming Machine — Bead Bed
Benchtop vacuum former for retainers, splints and trays, with a rotating heater head, film clamp frame and steel bead model bed.
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Need volume pricing or a fit-out quote? Request a quote

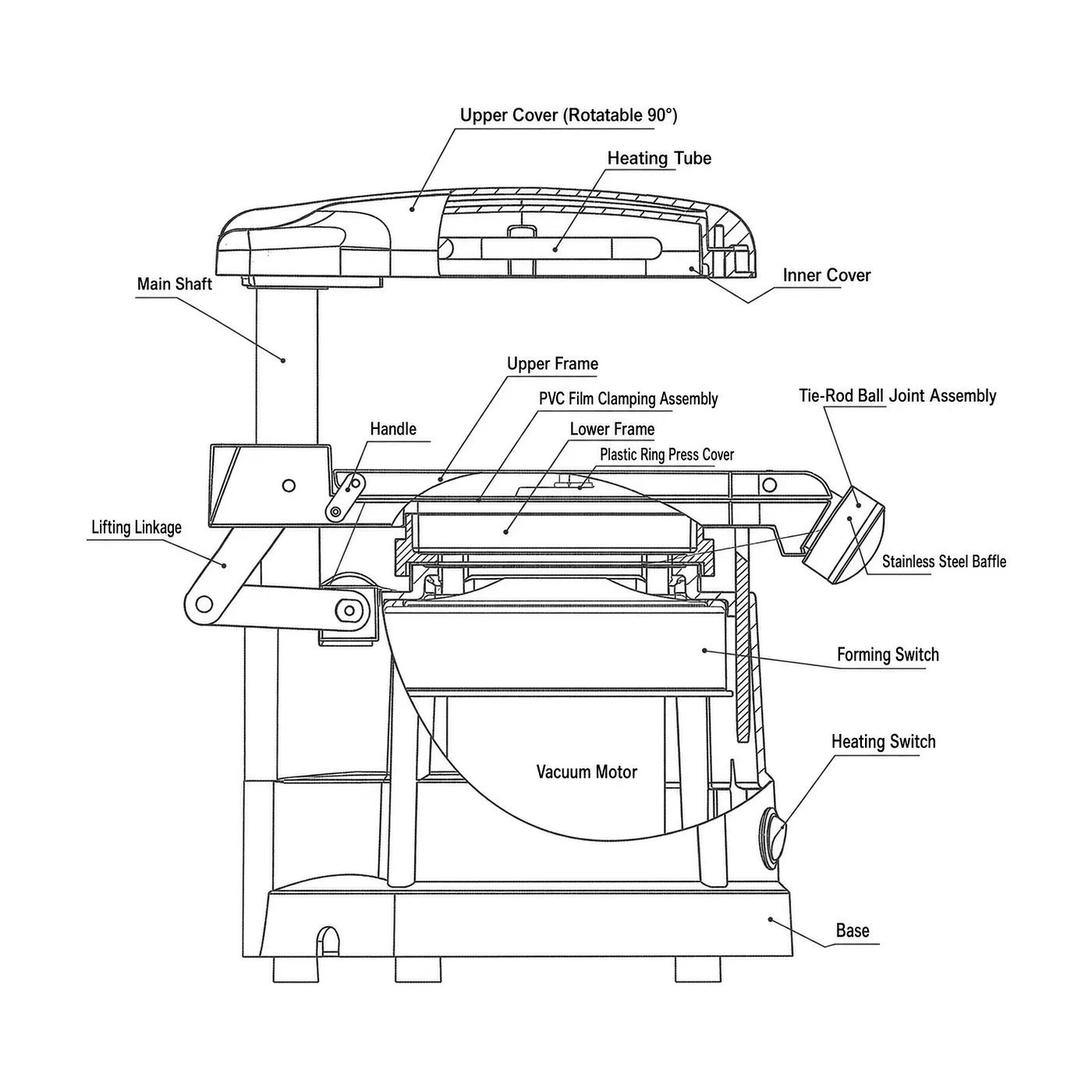

Specification
- Heater head
- Rotates 90 degrees clear of the forming area
- Model bed
- Steel beads on a perforated stainless tray
- Sheet clamping
- Square clamp frame (as photographed); blank shapes accepted confirmed at quotation
- Forming control
- Side lever drops the frame and starts the vacuum
- Vacuum source
- Integral motor in the base
- Body
- Cast metal base and cover
- Sheet size range
- Confirmed at quotation
- Supply
- Confirmed at quotation
- Includes
- Confirmed at quotation
Why this unit
A benchtop vacuum former for retainers, bleaching trays, splints and temporary appliances. The heater head rotates ninety degrees clear of the work area rather than lifting straight up, so the softened sheet is drawn down without you reaching across a hot element.
The model sits in a bed of steel beads on a perforated tray. Beads support the undercuts and let vacuum reach the whole periphery, which is the difference between a retainer that seats and one that lifts at the distal. Sheet material is held in a clamp frame that takes both round and square blanks, and the lever on the right drops the frame and starts forming in one movement.
Sheet size range and supply voltage are confirmed against the factory build on your quotation. Supplied with a bag of steel beads.
Sample data — catalog in progress
