LZDJ-III Electrolytic Polisher — Single Bath — image 1 of 2
Electrolytic Polisher

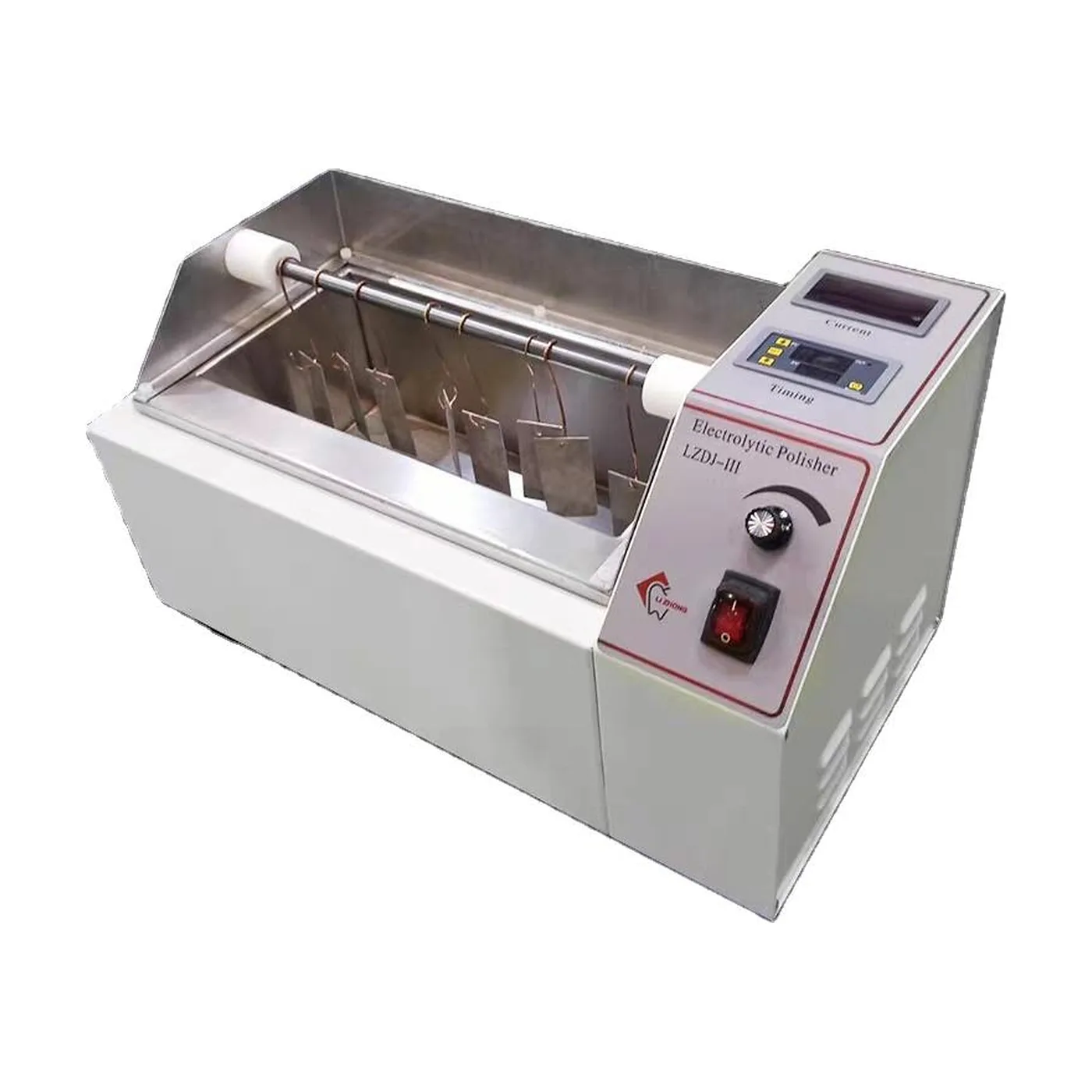

LZDJ-III Electrolytic Polisher — Single Bath
Single-bath electropolisher for cobalt chrome frameworks, with a suspension bar, current readout and cycle timer.
Sales tax is calculated at checkout from your ship-to state. Freight quoted separately.
Need volume pricing or a fit-out quote? Request a quote
Specification
- Bath configuration
- Single stainless bath
- Work holding
- Suspension bar spanning the tank, multiple hangers
- Readouts
- Delivered current and cycle time, separate displays
- Output control
- Single rotary control
- Controls
- Illuminated master switch on the fascia
- Bath volume
- Confirmed at quotation
- Output range
- Confirmed at quotation
- Supply
- Confirmed at quotation
Why this unit
A single-bath electropolisher for bringing cast cobalt chrome frameworks to a finish before hand polishing. Work hangs from a suspension bar that spans the tank, so several frameworks run in one cycle at a consistent distance from the electrode instead of being held in by hand one at a time.
The fascia carries two readouts — delivered current above, cycle time below — with a single rotary control for output. Reading current rather than guessing at it is what lets you repeat a result: the same alloy at the same current for the same time comes out the same, and a clasp that has been over-polished does not go back.
This is the single-tank unit. If you need to run two solutions or separate stripping from polishing, the dual-tank LZDZ-I in this catalogue is the machine for that. Bath volume, output range and supply voltage are confirmed on your quotation.
Sample data — catalog in progress
